Live Optical Fiber Identifier with Built-in Visual Fault Locator and Optical Power Meter, 800 to 1700nm FTTH Test Tool
FYBOPTWU
- SKU
- FOD-OFI-VFL-OPM
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Key Features
- Identifies live fibers without disconnecting them and shows signal direction and relative core power
- Detects 270Hz, 1kHz and 2kHz tone signals to pinpoint a specific fiber quickly
- Built-in visual fault locator (VFL) for finding breaks, bends and bad splices up to about 10 to 15 km
- Built-in optical power meter covering 850, 1300, 1310, 1490, 1550 and 1625nm
- Wide measurement range from -50 to +26 dBm
- Metal clamp head fits 250µm, 900µm, 2mm and 3mm fiber with no adapter swaps
- 2.5mm universal connector port
- Color LED display, lightweight 7 oz body, runs on 2 AA batteries
- CE and RoHS compliant
Description

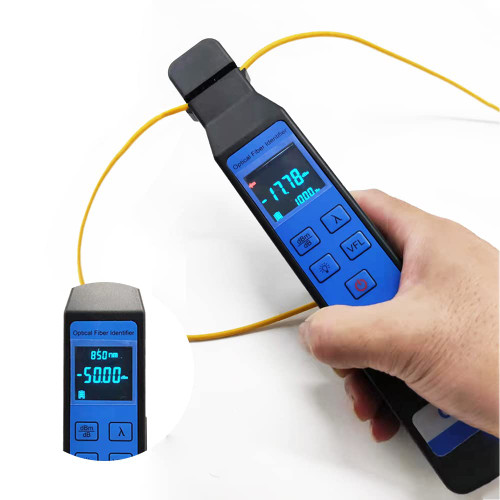

This 3-in-1 live optical fiber identifier gives field technicians a single handheld tool for fiber identification, fault location and power measurement. Clamp it onto a live fiber to see which direction the signal is traveling and how strong it is, without cutting service or unplugging connectors. It also detects 270Hz, 1kHz and 2kHz test tones, so you can trace a specific fiber in a crowded tray or splice closure in seconds.
The built-in visual fault locator shines a red laser through the fiber to show breaks, tight bends and poor splices over distances of roughly 10 to 15 km. The integrated optical power meter reads six common wavelengths from 850nm to 1625nm across a -50 to +26 dBm range, covering multimode, single mode and PON/FTTH networks.
The metal clamp accepts 250µm bare fiber, 900µm tight buffer, and 2mm or 3mm jacketed cable without changing adapters. A clear color screen, compact 9 x 1.7 x 1.4 inch body and AA battery power make it easy to carry through FTTH installs, data centers, campus networks and telecom maintenance work.
Specification
| Specification | Value |
|---|---|
| Functions | Live Fiber Identifier, Visual Fault Locator, Optical Power Meter |
| Identifier Wavelength Range | 800 to 1700nm |
| Tone Detection | 270Hz, 1kHz, 2kHz |
| VFL Distance | Approx. 10 to 15 km |
| OPM Test Wavelengths | 850 / 1300 / 1310 / 1490 / 1550 / 1625nm |
| OPM Measurement Range | -50 to +26 dBm |
| Connector | 2.5mm universal |
| Applicable Fiber | 250µm / 900µm / 2mm / 3mm |
| Display | Color LED screen |
| Power Source | 2 x AA alkaline batteries |
| Max Operating Temperature | 50°C (122°F) |
| Dimensions | 230 x 43 x 36 mm (9.06 x 1.69 x 1.42 in) |
| Weight | 200 g (7.05 oz) |
| Compliance | CE, RoHS |
| Application | FTTH, PON, telecom, data center, LAN |
