Fiber Termination Kit with 30km Visual Fault Locator, Optical Power Meter, Fiber Cleaver, Strippers and Cleaning Tools for FTTH and CATV

Write a Review
$289.00
SKU
FOD-TERM-KIT-VFL-OPM
Weight
1.00 LBS
Shipping
Free Shipping

Fiber Termination Kit with 30km Visual Fault Locator, Power Meter and Cleaver

This is a complete field kit for installing, testing and repairing fibre links, covering everything from stripping and cleaving through to measuring loss and locating faults. It suits FTTH work, CATV engineering, and general network installation and maintenance.

Optical power meter. Ten test wavelengths across a -70 to +10 dBm range, with a built-in 10km visual fault locator. It stores 500 sets of readings and can display linear mW and non-linear dBm at the same time. Backlight, illumination, wavelength memory, user calibration and automatic shutdown are all supported.

Visual fault locator. A 30mW high-power 650nm unit reaching 20 to 30km, with a 2.5mm universal interface. It makes breaks, poor splices, tight bends and cracks visible along the fibre, which is far quicker than working back through a link by elimination.

Fiber cleaver. The three-in-one clamp takes 3mm drop cable, 900µm pigtail and 250µm bare fibre. The blade returns automatically, cutting angle stays under 0.8°, and it is rated for around 32,000 cuts.

Cleaning tools. The 1.25mm pen cleans LC and MU connectors and the 2.5mm pen cleans SC, FC and ST, each rated for over 800 cleans. The cassette cleaner covers 2.5mm and 1.25mm ferrules for over 550 cleans, and comes with a replacement tape roll.

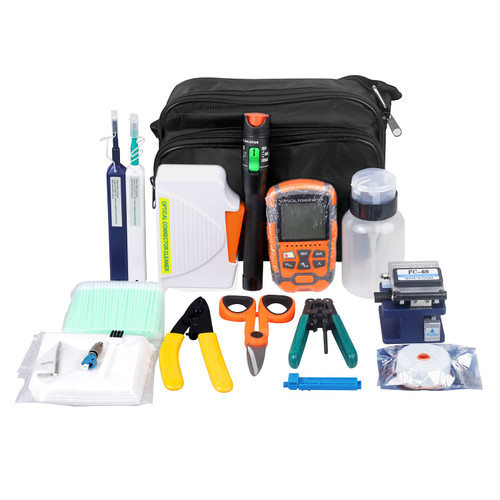

Package includes:

  • Optical power meter with built-in VFL
  • 30mW visual fault locator
  • Fibre cleaver
  • Drop cable stripper
  • CFS-3 fibre stripper
  • Kevlar scissors
  • 1.25mm fibre cleaning pen
  • 2.5mm fibre cleaning pen
  • Fibre cleaning cartridge with replacement tape roll
  • Fibre optic cleaning swabs
  • Cleaning paper and alcohol bottle
  • FC-LC adapter
  • Black tool bag

Specification


Kit Type Cleaning and termination Recommended Use Fibre network installation, maintenance and repair
OPM Wavelengths 10 test wavelengths OPM Range -70 to +10 dBm
OPM Data Storage 500 sets OPM Display Linear mW and non-linear dBm
VFL Output Power 30 mW VFL Wavelength 650 nm
VFL Test Distance 20 to 30 km VFL Interface 2.5 mm universal
Cleaver Fibre Types 3 mm drop cable, 900 µm pigtail, 250 µm bare fibre Cleaver Cutting Angle Under 0.8°
Cleaver Blade Life Approx. 32,000 cuts Pen Cleaning Cycles Over 800
Cassette Cleaning Cycles Over 550 Connector Types SC, FC, ST, LC, MU
Indoor / Outdoor Use Indoor and outdoor Number of Items 17
Colour Black Unit Count 1 kit

Key Features

  • Complete termination kit: strip, cleave, clean, test and fault-find in one bag
  • Optical power meter with 10 wavelengths, -70 to +10 dBm range and 500-reading memory
  • 30mW visual fault locator reaching 20 to 30km at 650nm, for finding breaks, bends and bad splices
  • Fibre cleaver handling 3mm drop cable, 900µm pigtail and 250µm bare fibre, under 0.8° cutting angle
  • Cleaver rated for around 32,000 cuts with automatic blade return
  • 1.25mm and 2.5mm cleaning pens, over 800 cleans each, plus cassette cleaner with replacement tape
  • Drop cable stripper, CFS-3 stripper, Kevlar scissors and FC-LC adapter included
  • Supplied in a black tool bag for indoor and outdoor field work
