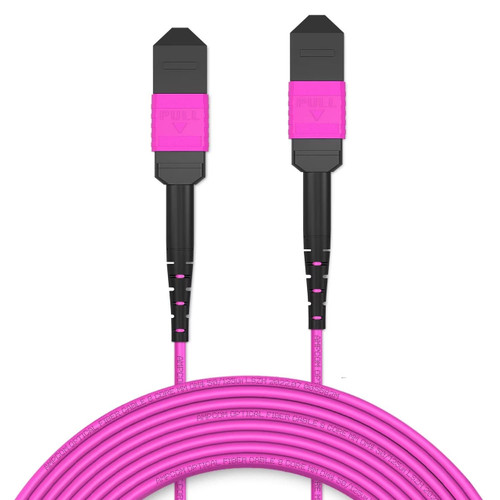

30m (98.42ft) MPO Female to MPO Female OM4 Multimode Fiber Trunk Cable, 12 Fibers, Type B Polarity, LSZH, Purple
- SKU
- FOD-MPO-OM4-12F-FF-TB-30M
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Key Features
- MPO Female to MPO Female design with Type B polarity
- 12 OM4 multimode fibers (50/125µm) suited to 850nm networks
- Low loss ratings of ≤0.7dB insertion and >30dB return
- Space-efficient 3.0mm LSZH jacket in standard OM4 purple
- Fits 40G QSFP+, 100G QSFP28, 200G and 400G transceivers
- Pre-terminated at the factory for faster, simpler deployment
- Dependable operation from -40°C to +85°C
Description
This 30m (98.42ft) MPO Female to MPO Female trunk cable is a factory-terminated choice for the longest runs in high-density fiber networks. It brings 12 OM4 multimode fibers (50/125µm) together in one compact cable, so you can establish high-speed connections over long distances without terminating fiber in the field.
MPO Female connectors with Type B polarity are fitted on both ends, making this cable a strong match for 40G QSFP+ SR4, 100G QSFP28 SR4, 200G and 400G parallel optic transceivers. Insertion loss of 0.7dB or less and return loss above 30dB help preserve signal quality at 850nm across the full length.
The 30m length is ideal for large-scale backbone runs, such as connecting distant ends of a data hall, linking a main distribution area to far equipment zones, or running between floors and rooms in bigger facilities. The 3.0mm LSZH (Low Smoke Zero Halogen) jacket keeps the cable light and flexible over long distances, making it easier to pull through trays, conduits and raised floors. LSZH material gives off less smoke and no halogen gases in a fire, so it is a safe option for enclosed spaces and occupied buildings. The purple jacket follows the OM4 color code, helping technicians trace the cable along its entire run.
Rated for 180N long-term and 500N short-term tensile strength and an operating temperature range of -40°C to +85°C, this OM4 MPO trunk cable is built for long pulls and reliable long-term service. It is a cost-effective way to reduce installation time, save space and keep cabling well organized in data centers, server rooms and enterprise networks.
Specification
| Specification | Detail |
|---|---|
| Fiber Cable Type | 12 Fibres |
| Fiber Mode | OM4 Multimode 850nm |
| Connector A | MPO Female, Type B |
| Connector B | MPO Female, Type B |
| Cable Jacket | LSZH |
| Jacket Color | Purple |
| Outer Cable Diameter | 3.0mm |
| Minimum Bending Radius | 10D/20D (Static/Dynamic) |
| Insertion Loss (dB) | ≤ 0.7dB |
| Return Loss (dB) | >30dB |
| Wavelength (nm) | 850nm |
| Tensile Strength (N) | 180N (Long Term)/500N (Short Term) |
| Operating Temperature (°C) | -40°C to +85°C |
