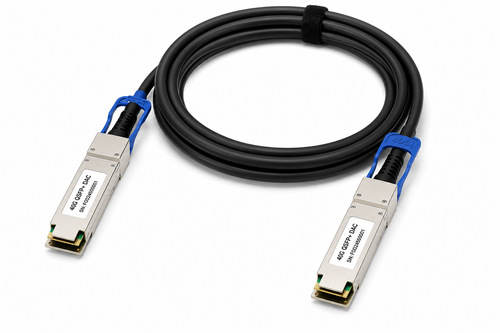

1m (3ft) D-Link DEM-CB100QXS Compatible 40G QSFP+ Passive Direct Attach Copper Twinax Cable

Write a Review
$69.00
SKU
FOD-DLK-DEM-CB100QXS-1M
Weight
1.00 LBS
Shipping
Free Shipping

D-Link DEM-CB100QXS Compatible 40G QSFP+ 1m Passive Direct Attach Copper Cable

This 40G QSFP+ twinax cable is a lower-cost replacement for the D-Link DEM-CB100QXS. It provides a 40 Gigabit link between QSFP+ ports over very short distances, and carries a maximum aggregate rate of 40 Gb/s across four 10 Gb/s lanes.

The cable is programmed to work with a wide range of D-Link 40GE switches, routers, network interface cards and storage systems, so the port recognises it at plug-in with no extra configuration. Being passive it needs no power beyond the host port and adds almost no latency, drawing a maximum of 1.5 W.

At 1 metre it suits intra-rack connections in a data centre, spine to leaf or switch to server, at a fraction of the cost of a pair of 40G optical modules with a fibre patch lead. Note the 30 mm minimum bend radius: QSFP+ twinax is thicker and stiffer than 10G SFP+ cable, so allow a little more room behind the rack.

QSFP+ is a larger connector than SFP+ and the two are not interchangeable. This cable fits 40G QSFP+ ports only.

Specification


Compatible OEM Part Number DEM-CB100QXS Form Factor QSFP+ DAC Cable
Data Rate 40 Gb/s Passive or actively equalized Passive
Supply Voltage 3.3V Cable Length 1 metre
Cable Impedance 100 Ω Cable Type Twinax
Wire Gauge 30 AWG Minimum Cable Bend Radius 30 mm
Cable Jacket Type PVC Connector QSFP+
Digital Diagnostic Monitoring N/A Weight 0.2 kg
Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C		 Application 40GbE and high-density 10GbE interconnects
Datacom/telecom switch and router connections
Data aggregation and backplane applications
Proprietary high-speed interconnections
InfiniBand connectivity SDR/DDR/QDR
Data centre cabling infrastructure
Compliance IEEE 802.3ba
InfiniBand SDR/DDR/QDR
Fibre Channel / Fibre Channel over Ethernet (FCoE)
SFF-8436, RoHS

Key Features

  • Maximum aggregate data rate 40 Gb/s (4 x 10 Gb/s)
  • Hot-pluggable 38-pin footprint
  • Single 3.3V power supply
  • Compliant with the IEEE 802.3ba 40GBASE-CR4 standard
  • Compliant with MSA SFF-8436
  • Compliant with InfiniBand QDR/DDR data rates
  • Maximum 1.5 W operating power
  • Operating temperature range 0 to 70°C
  • RoHS compliant and lead-free
