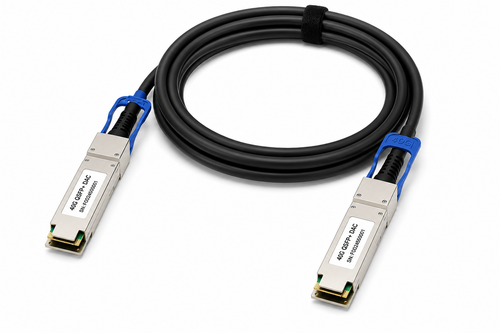

1m (3ft) Dell Networking 470-AAVR Compatible 40G QSFP+ Passive Direct Attach Copper Twinax Cable
DELL
- SKU
- FOD-DEL-470-AAVR-1M
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Dell Networking 470-AAVR Compatible 40G QSFP+ Direct Attach Copper Cable (1m, 30AWG, Passive)
This 40G QSFP+ twinax cable is a lower-cost replacement for the Dell Networking 470-AAVR assembly. It fits the 40G QSFP+ ports on Dell Networking switches, servers and adapter cards, and carries a maximum aggregate rate of 40 Gb/s across four 10 Gb/s lanes.
The cable is factory programmed and tested, so the port recognises it at plug-in and it performs the same as the original. Being passive it needs no power beyond the host port and adds almost no latency, drawing a maximum of 1.5 W.
At 1 metre it is built for short high-speed interconnects inside a rack, spine to leaf or switch to server, and costs considerably less than a pair of 40G optical modules with a fibre patch lead. Note the 30 mm minimum bend radius: QSFP+ twinax is thicker and stiffer than 10G SFP+ cable, so allow a little more room behind the rack.
QSFP+ is a larger connector than SFP+ and the two are not interchangeable. This cable fits 40G QSFP+ ports only.
Specification
| Compatible OEM Part Number | 470-AAVR | Form Factor | QSFP+ Cable |
| Data Rate | 40 Gb/s | Passive or actively equalized | Passive |
| Supply Voltage | 3.3V | Length | 1 metre |
| Impedance | 100 Ω | Type | Twinax |
| Wire Gauge | 30 AWG | Minimum Bend Radius | 30 mm |
| Jacket Type | PVC | Connector | QSFP+/QSFP+ |
| Digital Diagnostic Monitoring | N/A | Weight | 0.2 kg |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Application | 40GbE data center switches and servers |
| Compliance | IEEE 802.3ba InfiniBand SDR/DDR/QDR Fibre Channel / Fibre Channel over Ethernet (FCoE) SFF-8436, RoHS |
Key Features
- Functionally identical to the Dell Networking 470-AAVR
- Maximum aggregate data rate 40 Gb/s (4 x 10 Gb/s)
- Single 3.3V power supply
- Maximum 1.5 W operating power
- RoHS compliant and lead-free
