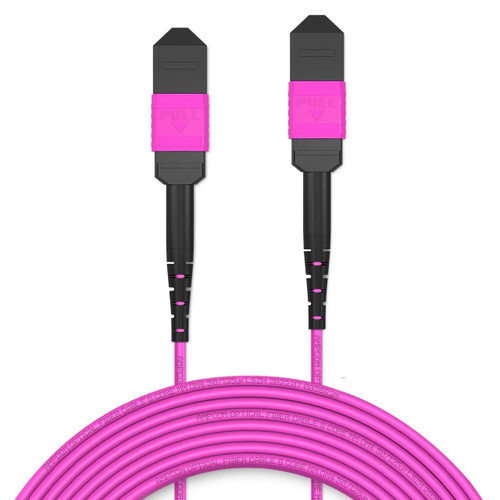

3m (9.84ft) MPO Female to MPO Female OM4 Multimode Fiber Trunk Cable, 12 Fibers, Type B Polarity, LSZH, Purple
- SKU
- FOD-MPO-OM4-12F-FF-TB-3M
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Key Features
- MPO Female connectors at both ends, wired for Type B polarity
- 12 OM4 multimode fibers (50/125µm) designed for 850nm operation
- Low loss performance: ≤0.7dB insertion loss, >30dB return loss
- Space-saving 3.0mm LSZH jacket in OM4-standard purple
- Works with 40G QSFP+, 100G QSFP28, 200G and 400G transceivers
- Factory-terminated and ready to plug in, no field work needed
- Operating temperature range of -40°C to +85°C
Description
This 3m (9.84ft) MPO Female to MPO Female trunk cable is a pre-terminated, plug-and-play option for building out high-density fiber links in the data center. Twelve OM4 multimode fibers (50/125µm) are packed into one compact cable, so you can deploy high-bandwidth connections quickly and skip on-site termination entirely.
Both connectors are MPO Female with Type B polarity, a natural match for 40G QSFP+ SR4, 100G QSFP28 SR4, 200G and 400G parallel optic transceivers. Insertion loss stays at 0.7dB or below and return loss exceeds 30dB, giving you clean, reliable transmission at 850nm.
At 3m, this cable has the reach to run between racks a few positions apart or route neatly through overhead and underfloor pathways. The 3.0mm LSZH (Low Smoke Zero Halogen) jacket is thin and flexible, which keeps bundles manageable and frees up space in crowded trays. In a fire, LSZH material produces less smoke and no halogen gases, making the cable a smart pick for enclosed areas and occupied buildings. Its purple jacket follows the OM4 color code for easy tracing.
With tensile strength of 180N long-term and 500N short-term, plus an operating range of -40°C to +85°C, this OM4 MPO trunk cable stands up to everyday handling and varied conditions. It is a cost-effective way to save rack space, cut down on cable clutter and speed up installs in data centers, server rooms and enterprise networks.
Specification
| Specification | Detail |
|---|---|
| Fiber Cable Type | 12 Fibres |
| Fiber Mode | OM4 Multimode 850nm |
| Connector A | MPO Female, Type B |
| Connector B | MPO Female, Type B |
| Cable Jacket | LSZH |
| Jacket Color | Purple |
| Outer Cable Diameter | 3.0mm |
| Minimum Bending Radius | 10D/20D (Static/Dynamic) |
| Insertion Loss (dB) | ≤ 0.7dB |
| Return Loss (dB) | >30dB |
| Wavelength (nm) | 850nm |
| Tensile Strength (N) | 180N (Long Term)/500N (Short Term) |
| Operating Temperature (°C) | -40°C to +85°C |
| -40°C to +85°C |
