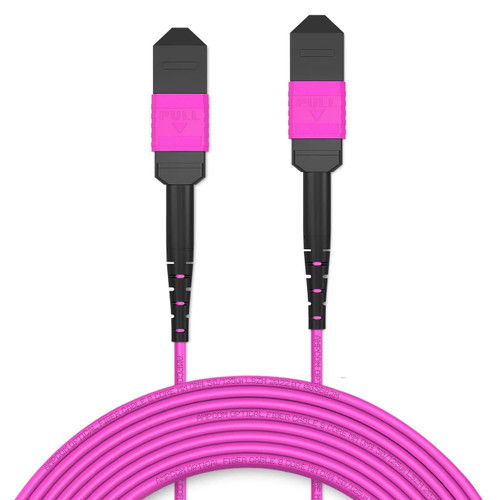

35m (114.82ft) MPO Female to MPO Female OM4 Multimode Fiber Trunk Cable, 12 Fibers, Type B Polarity, LSZH, Purple
- SKU
- FOD-MPO-OM4-12F-FF-TB-35M
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Key Features
- MPO Female connectors at both ends using Type B polarity
- 12-fiber OM4 multimode construction (50/125µm) for 850nm links
- Insertion loss of 0.7dB or lower and return loss greater than 30dB
- Slim, flexible 3.0mm LSZH jacket in OM4 purple
- Designed for 40G QSFP+, 100G QSFP28, 200G and 400G transceivers
- Factory-terminated to eliminate time-consuming field termination
- Rated for -40°C to +85°C operating temperatures
Description
This 35m (114.82ft) MPO Female to MPO Female trunk cable delivers a factory-terminated, high-density fiber link for extended runs across data centers and enterprise sites. It packs 12 OM4 multimode fibers (50/125µm) into a single compact cable, giving you a fast, efficient way to connect high-speed equipment over long distances with no on-site termination.
Both ends feature MPO Female connectors with Type B polarity, making the cable a dependable fit for 40G QSFP+ SR4, 100G QSFP28 SR4, 200G and 400G parallel optic transceivers. Insertion loss held at 0.7dB or less and return loss above 30dB support clear, stable transmission at 850nm from end to end.
The 35m length is built for long backbone and cross-facility runs, such as connecting opposite sides of a large data hall, linking main and secondary distribution areas, or running between floors in multi-level buildings. Even at this length, the 3.0mm LSZH (Low Smoke Zero Halogen) jacket keeps the cable light, flexible and easy to route through cable trays, conduits and raised floors. LSZH material limits smoke and produces no halogen gases during a fire, which makes the cable a safer choice for enclosed spaces and occupied buildings. The purple jacket follows the OM4 color standard, so it stays easy to identify throughout long pathways.
With 180N long-term and 500N short-term tensile strength and an operating range of -40°C to +85°C, this OM4 MPO trunk cable is made to handle long installation pulls and provide reliable performance for years. It is a cost-effective way to speed up deployment, conserve space and keep cabling tidy in data centers, server rooms and enterprise networks.
Specification
| Specification | Detail |
|---|---|
| Fiber Cable Type | 12 Fibres |
| Fiber Mode | OM4 Multimode 850nm |
| Connector A | MPO Female, Type B |
| Connector B | MPO Female, Type B |
| Cable Jacket | LSZH |
| Jacket Color | Purple |
| Outer Cable Diameter | 3.0mm |
| Minimum Bending Radius | 10D/20D (Static/Dynamic) |
| Insertion Loss (dB) | ≤ 0.7dB |
| Return Loss (dB) | >30dB |
| Wavelength (nm) | 850nm |
| Tensile Strength (N) | 180N (Long Term)/500N (Short Term) |
| Operating Temperature (°C) | -40°C to +85°C |
