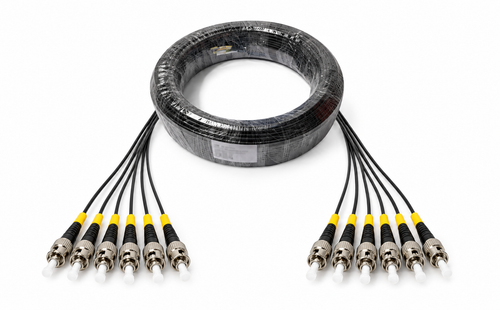

30m (98ft) ST to ST Single Mode Armored Fiber Optic Cable, 6 Strand, 9/125 OS2, Outdoor

Write a Review
$320.00
SKU
FOD-ST-ST-SM-ARM-6F-30M
UPC
7426933685641
Weight
1.00 LBS
Shipping
Free Shipping

Key Features

  • 30 meter (98 ft) factory-terminated and tested cable assembly, ready to use straight from the box
  • 6 strand build provides three fiber pairs, giving you one active link with spares or up to three links in a single cable
  • Built-in stainless steel interlocking armor guards against crushing, rodents, and rough handling
  • Outdoor rated for exposure to dust, oil, gas, and moisture
  • Single mode 9/125μm OS2 glass for long distance and high bandwidth links
  • ST UPC connectors on both ends with ≤0.3dB insertion loss and ≥50dB return loss
  • Wide -40 to 75°C operating range for outdoor, buried conduit, and industrial installs

Description
This 30 meter (98 ft) armored fiber cable has a built-in stainless steel armor layer that protects the optical fibers far better than a standard fiber optic cable. Its rugged construction makes it suitable for hazardous areas, including environments with dust, oil, gas, moisture, or rodents that chew through ordinary cable.

At 30 meters, this assembly fits medium outdoor and industrial runs, such as connecting buildings on the same property, linking a control cabinet to a machine, or running from an equipment room to an outdoor enclosure. It arrives factory terminated and tested, so there are no field terminations, no polishing, and no splice enclosures to seal.

The 6 strand design gives you three fiber pairs in one cable. Use one pair for your active link and hold two in reserve, or run up to three separate duplex links through a single conduit. That spares you a second cable pull later when you add a camera, sensor, or switch along the same route.

Fitted with ST UPC connectors on both ends and built on 9/125μm single mode glass, it offers low insertion loss and high return loss for dependable campus, industrial, and backbone links. The stainless steel tube and PVC jacket handle a 40mm bend radius and tensile loads of 100 to 132 lbs, and the cable works from -40 to 75°C.

Specification


Connector-1 ST UPC Connector-2 ST UPC
Cable Length 30m (98ft) Strand Count 6 Strand (3 Pairs)
Fiber Mode 9/125μm OS2 Fiber Type Single Mode
Cable Diameter 3.0mm Cable Jacket Single Armored
Cable Color Blue Cable Material Stainless steel tube, PVC
Bend Radius 40mm Tensile Loads 100~132 lbs
Insertion Loss ≤0.3dB Return Loss ≥50dB
Operating Temperature -40~75°C Storage Temperature -45~85°C
