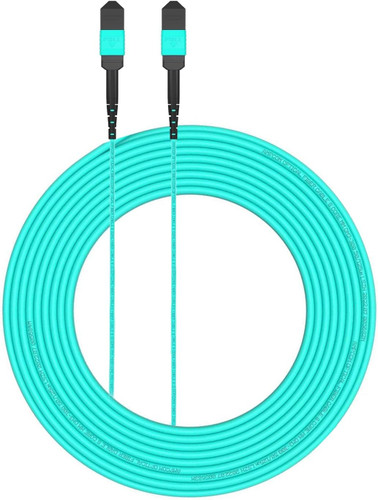

30m (98.42ft) MPO/A Female to MPO/A Female OM3 Multimode Fiber Trunk Cable, 16 Fibers, 50/125µm, Type B Polarity, LSZH
- SKU
- FOD-MPOA-OM3-16F-FF-TB-30M
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Key Features
- 16-fiber MPO/A Female connectors on both ends with Type B polarity
- OM3 multimode 50/125µm fiber for fast, dependable data links
- Insertion loss at or below 0.35dB for steady high-speed transfer
- Supports 40G, 100G, 200G, 400G, 800G and 1.6T optical transceivers
- Flame-retardant 3.0mm LSZH jacket with aramid strength members
- Each connector precision polished and individually tested for insertion loss, return loss, polarity and 3D interferometry
- Compact, high-density layout that installs quickly and saves space
Description
This 30m (98.42ft) MPO/A Female to MPO/A Female trunk cable delivers a fast, reliable 16-fiber connection for long runs in data centers and enterprise networks. Built on OM3 multimode 50/125µm fiber with 16 fibers on each end and Type B polarity, it supports transceiver modules from 40G and 100G up to 400G, 800G and 1.6T.
Insertion loss stays at 0.35dB or below, keeping high-speed data transfer smooth and consistent on every supported module. Each connector is precision polished and individually tested for insertion loss, return loss, polarity and 3D interferometry, so every cable is ready for dependable service.
The flame-retardant 3.0mm LSZH (Low Smoke Zero Halogen) jacket gives off less smoke and no halogen gases in a fire, making it a safe choice for enclosed spaces and occupied buildings. Aramid strength members provide extra pulling strength and mechanical durability, which is especially useful on longer runs and in demanding environments.
The 30m length is built for long backbone connections, such as linking opposite ends of a data hall, running from a main distribution area to remote equipment rows, or connecting rooms on the same floor. Its slim, high-density design stays easy to pull and route over long distances, helping you save room, lower costs and reduce installation and upkeep in tightly packed cabling setups.
Note: 16-fiber MPO/A connectors are not compatible with 12-fiber MPO connectors. Check that your transceivers, panels and adapters are designed for 16-fiber MPO before ordering.
Specification
| Specification | Detail |
|---|---|
| Fiber Count | 16 Fibers |
| Fiber Mode | OM3 Multimode 50/125µm |
| Connector A | MPO/A Female |
| Connector B | MPO/A Female |
| Polarity | Type B |
| Cable Length | 30m (98.42ft) |
| Cable Jacket | LSZH (Flame Retardant) |
| Outer Cable Diameter | 3.0mm |
| Strength Member | Aramid |
| Insertion Loss (dB) | ≤ 0.35dB |
| Testing | Individually tested for insertion loss, return loss, polarity and 3D interferometry |
| Supported Speeds | 40G, 100G, 200G, 400G, 800G, 1.6T |
