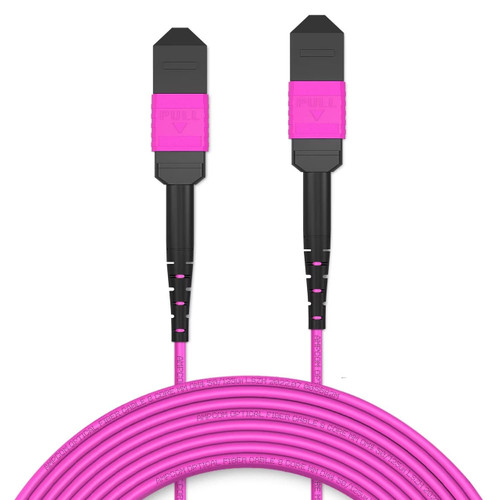

150m (492.13ft) MPO Female to MPO Female OM4 Multimode Fiber Trunk Cable, 12 Fibers, Type B Polarity, LSZH, Purple
- SKU
- FOD-MPO-OM4-12F-FF-TB-150M
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Key Features
- MPO Female connectors at each end with Type B polarity
- 12 OM4 multimode fibers (50/125µm) designed for 850nm networks
- Connector insertion loss of ≤0.7dB and return loss above 30dB
- Lightweight 3.0mm LSZH jacket in standard OM4 purple
- For 40G QSFP+, 100G QSFP28, 200G and 400G transceivers rated for the distance
- Factory-terminated to save significant labor on very long runs
- Operating temperature range of -40°C to +85°C
Description
This 150m (492.13ft) MPO Female to MPO Female trunk cable is a factory-terminated solution for very long backbone runs in large data centers, campus buildings and enterprise networks. It combines 12 OM4 multimode fibers (50/125µm) in one compact cable, so you can span long distances with a high-density link and avoid the time and expense of terminating fiber in the field.
Both ends use MPO Female connectors with Type B polarity, making the cable suitable for 40G QSFP+, 100G QSFP28, 200G and 400G parallel optic transceivers. Connector insertion loss of 0.7dB or less and return loss above 30dB support clean transmission at 850nm. At 150m, choose transceivers rated for extended OM4 reach, as many standard short-reach modules are specified for shorter distances.
The 150m length is made for the longest backbone routes, such as connecting separate buildings on a campus, linking data halls at opposite ends of a facility, or running vertical risers through multi-story buildings. The 3.0mm LSZH (Low Smoke Zero Halogen) jacket keeps this long cable light and flexible, making it easier to pull through cable trays, conduits and raised floors. LSZH material produces less smoke and no halogen gases in a fire, which makes it a safe choice for enclosed spaces and occupied buildings. The purple jacket follows the OM4 color code, helping technicians trace the cable along its full length.
Rated for 180N long-term and 500N short-term tensile strength and an operating range of -40°C to +85°C, this OM4 MPO trunk cable is built to handle long installation pulls and deliver reliable long-term performance. It is a cost-effective way to reduce installation time, save space and keep large-scale cabling organized across data centers, server rooms and enterprise networks.
Specification
| Specification | Detail |
|---|---|
| Fiber Cable Type | 12 Fibres |
| Fiber Mode | OM4 Multimode 850nm |
| Connector A | MPO Female, Type B |
| Connector B | MPO Female, Type B |
| Cable Jacket | LSZH |
| Jacket Color | Purple |
| Outer Cable Diameter | 3.0mm |
| Minimum Bending Radius | 10D/20D (Static/Dynamic) |
| Insertion Loss (dB) | ≤ 0.7dB |
| Return Loss (dB) | >30dB |
| Wavelength (nm) | 850nm |
| Tensile Strength (N) | 180N (Long Term)/500N (Short Term) |
| Operating Temperature (°C) | -40°C to +85°C |
