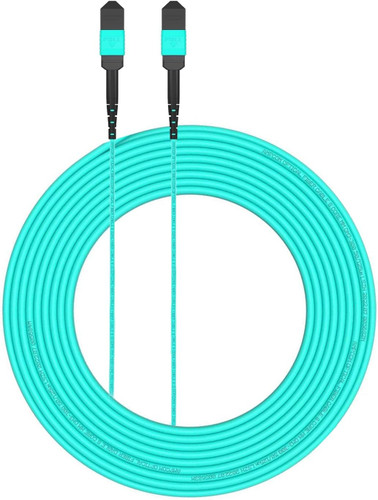

10m (32.81ft) MPO/A Female to MPO/A Female OM3 Multimode Fiber Trunk Cable, 16 Fibers, 50/125µm, Type B Polarity, LSZH
- SKU
- FOD-MPOA-OM3-16F-FF-TB-10M
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Key Features
- 16-fiber MPO/A Female connectors on each end, wired for Type B polarity
- OM3 multimode 50/125µm fiber built for high-bandwidth short-reach links
- Insertion loss of 0.35dB or lower for clean, steady signal transmission
- Compatible with 40G, 100G, 200G, 400G, 800G and 1.6T transceiver modules
- Durable 3.0mm LSZH jacket with aramid strength members inside
- High-precision polished connectors, 100% tested for insertion loss, return loss, polarity and 3D interferometry
- Compact, high-density construction that keeps racks and pathways organized
Description
This 10m (32.81ft) MPO/A Female to MPO/A Female trunk cable is built for high-speed, 16-fiber parallel optic connections in data centers and enterprise networks. It carries 16 OM3 multimode fibers (50/125µm) on each end with Type B polarity, giving you a dependable link for transceivers ranging from 40G and 100G to 400G, 800G and 1.6T.
Insertion loss of no more than 0.35dB helps maintain strong, consistent performance across every supported module. Each connector is precision polished and fully tested for insertion loss, return loss, polarity and 3D interferometry before it ships, so you can install with confidence.
The 3.0mm LSZH (Low Smoke Zero Halogen) jacket gives off less smoke and no halogen gases in a fire, making it a safe fit for enclosed spaces and occupied buildings. Aramid strength members add tensile strength and protect the fibers from strain during installation and over years of use.
At 10m, this cable has the reach to connect equipment across a row of racks, between neighboring rows, or through overhead and underfloor pathways. Its slim, high-density design is easy to route and helps reduce cable congestion, installation time and maintenance effort in busy fiber environments.
Note: 16-fiber MPO/A connectors are not compatible with 12-fiber MPO connectors. Check that your transceivers, panels and adapters are designed for 16-fiber MPO before ordering.
Specification
| Specification | Detail |
|---|---|
| Fiber Count | 16 Fibers |
| Fiber Mode | OM3 Multimode 50/125µm |
| Connector A | MPO/A Female |
| Connector B | MPO/A Female |
| Polarity | Type B |
| Cable Length | 10m (32.81ft) |
| Cable Jacket | LSZH |
| Outer Cable Diameter | 3.0mm |
| Strength Member | Aramid |
| Insertion Loss (dB) | ≤ 0.35dB |
| Testing | 100% tested for insertion loss, return loss, polarity and 3D interferometry |
| Supported Speeds | 40G, 100G, 200G, 400G, 800G, 1.6T |
