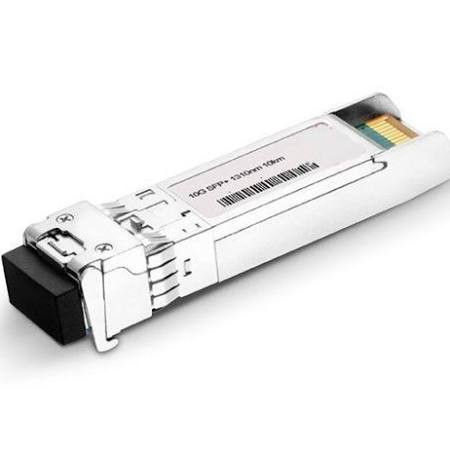

Dell 407-BBOP Compatible 10G SFP+ LR Module, 1310nm Single-Mode, 10km, LC Duplex
- SKU
- 407-BBOP-10G-LR-10KM
- Weight
- 1.00 LBS
- Shipping
- Calculated at Checkout
Dell 407-BBOP Compatible 10G SFP+ LR Transceiver (SMF, 1310nm, 10km, LC, DOM)
This SFP+ transceiver is a direct replacement for the Dell 407-BBOP module. It carries 10GBase-LR and 10GBase-LW traffic up to 10 km over single-mode fiber at a 1310nm wavelength, using a standard LC duplex connector.
The module is built to SFP+ MSA, SFF-8431, SFF-8432 and IEEE 802.3ae, so it works cleanly alongside gear from other vendors. Digital diagnostics (DOM) let you read temperature, voltage, laser bias, transmit power and receive power straight from the switch or server, which makes it easy to catch a weak fibre link before it causes an outage. It draws about 1 W and is hot-swappable, so you can fit or change one without taking the device down.
Every unit is coded and tested against Dell PowerSwitch and PowerEdge hardware, including their network interface cards, before it ships, so the 10G SFP+ port recognises it at boot with no extra configuration. Typical uses include small office networks, data centres, enterprise wiring closets, large campus links, metro area networks, and remote radio unit (RRU) and baseband unit (BBU) connections.
Specifications
| Compatible OEM Part# | 407-BBOP | Form Factor | SFP+ |
| Data Rate | 10 Gbps | Wavelength | 1310 nm |
| Media Type | SMF | Max Distance | 10 km |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitter Power | -6 ~ 0 dBm | Receiver Sensitivity | < -14.4 dBm |
| Extinction Ratio | > 3.5 dB | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Power Consumption | 1 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH SFP+ MSA, IEEE 802.3ae SFF-8431, SFF-8432, SFF-8472 |
| Environment | Operating Temperature: 0~70°C Storage Temperature: -40~85°C |
Application | 10GBase-LR/10GBase-LW Ethernet 10G fiber channel 10G data center switches and routers 10G network interface cards 10G fiber media converters |
| Shipping Weight | 0.03 kg | Dimensions (LxWxH) | 56.7×13.7×8.5 mm |
