2-Pack Gigabit Singlemode BiDi Fiber to Ethernet Media Converter Kit with 2 BiDi SFP Modules (TX1310nm/RX1550nm), RJ45 to LC, up to 20km

Write a Review
$184.41
SKU
FOD-MC-GBX-20KM-PR
Weight
1.00 LBS
Shipping
Free Shipping

Key Features

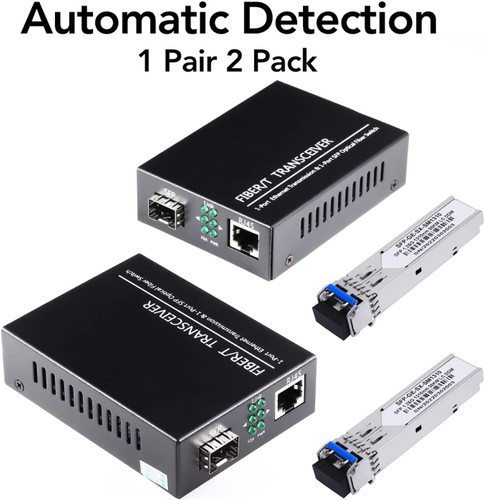

  • Ready-to-use kit: 2 Gigabit media converters, 2 BiDi SFP modules, 2 power adapters and user manual
  • Pre-installed BiDi singlemode SFP modules (TX1310nm/RX1550nm) with LC interface
  • Full Gigabit link over a single strand of 9/125µm singlemode fiber, up to 20km
  • 1.25Gbps SFP ports compatible with 1000Base-LX
  • Auto-sensing 10/100/1000Mbps RJ45 ports with full/half duplex and auto MDI/MDIX
  • Works with routers, switches, IP cameras, servers and other Gigabit copper devices
  • Supports 9K jumbo frames for high-throughput traffic
  • No configuration needed, just plug in and connect
  • LED indicators for power, fiber and copper speed, link/activity and duplex
  • Metal housing with side vents, built-in lightning protection, 3W or less per unit
  • UL/EN60950 power adapters, 100 to 240V AC input, 5V/1A output

Description
Long-distance fiber links do not have to use up two strands of fiber. This 2-pack Gigabit BiDi media converter kit carries full-speed Ethernet over a single singlemode fiber for up to 20 kilometers, making it an efficient way to extend your network between buildings, across a campus or out to remote equipment.

The kit arrives complete and ready to deploy. Each media converter comes with a BiDi singlemode SFP module already installed, transmitting at 1310nm and receiving at 1550nm over one LC fiber connection. Add a single run of standard 9/125µm singlemode fiber between the two units, connect your copper devices to the RJ45 ports, and power on. There is no software, driver or configuration to deal with.

Each RJ45 port auto-detects 10, 100 or 1000Mbps speeds, full or half duplex, and straight or crossover cabling, so it connects easily to routers, switches, servers, wireless access points and IP cameras. Support for 9K jumbo frames keeps large data transfers moving smoothly, and real-time LED indicators make it easy to confirm link status, speed and activity.

Built for reliable, around-the-clock operation, each converter has a metal housing with side air vents for cooling, built-in lightning protection and strong anti-interference performance, all while drawing 3 watts or less. It operates from 0°C to 60°C (32°F to 140°F), making it suitable for homes, offices and light industrial environments.

Typical uses include enterprise LAN extensions, data center uplinks, IP surveillance systems, FTTH projects and fiber links in EMI-sensitive locations such as hospitals, research labs and government facilities.

Specification

SpecificationDetails
Package Contents 2 x Gigabit Ethernet fiber media converter, 2 x BiDi SFP LC singlemode transceiver, 2 x DC power adapter (5V/1A), 1 x multilingual user manual and quick installation guide
Optical Port Speed 1.25Gbps, compatible with 1000Base-LX
Included SFP Modules BiDi singlemode, TX1310nm/RX1550nm, LC, up to 20km
Fiber Type Singlemode 9/125µm
Fiber Interface LC BiDi (single fiber)
Transmission Distance Up to 20km with included SFP modules
Copper Port 10/100/1000Mbps RJ45, auto-negotiation
Duplex Mode Full duplex / half duplex
MDI/MDIX Auto-crossover
Standards IEEE 802.3, 802.3u, 802.3z, 802.3ab
Jumbo Frame Up to 9K bytes
LED Indicators FP (fiber 1000M), TP (RJ45 1000M), Link/ACT (fiber and RJ45), FDX, PWR
Power Adapter Input 100 to 240V AC
Power Adapter Output 5V DC, 1A
Power Adapter Safety UL / EN60950
Power Consumption 3W or less per unit
Housing Metal, with side air vents
Protection Built-in lightning protection, anti-interference
Unit Dimensions 95 x 72 x 27mm (3.74 x 2.83 x 1.06 in)
Weight (with adapter) Approx. 0.35 kg (0.77 lb)
Package Dimensions 9.17 x 8.15 x 2.2 in
Shipping Weight 1.17 lb
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 5% to 90% RH, non-condensing
30-Day Warranty
