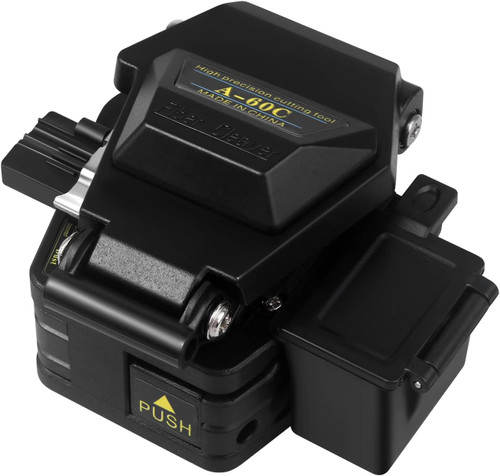

A-60C Fiber Optic Cleaver with 16-Position Tungsten Steel Blade, 3-in-1 Clamp and Auto Return for 0.25mm, 0.9mm and 3.0mm Fiber
FYBOPTWU
- SKU
- FOD-FCL-A60C
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Key Features
- 3-in-1 fiber clamp cleaves 0.25mm bare fiber, 0.9mm pigtail and 2.0 x 3.0mm drop cable
- Tungsten steel blade with 16 cutting positions and 48,000+ cleave service life
- Clean, smooth cleaves suitable for both fusion splicing and mechanical splicing
- Automatic blade return for faster, one-handed operation
- Built-in length fixing, so no separate length gauge is needed
- Waste fiber box collects fiber scraps for a safer, cleaner work area
- Aluminum alloy body with stainless steel slide rail for long-term durability
- Sponge pressing block and non-slip feet protect the cleaver and blade
- Compact and lightweight, comes with a shockproof carry bag and hex key
Description
A good splice starts with a good cleave. The A-60C fiber optic cleaver delivers consistent, flat end faces that meet the requirements of fusion splicing and mechanical splicing, making it a dependable tool for FTTH installs, field repairs and everyday fiber termination work.
The 3-in-1 clamp lets you cleave three common fiber types without swapping parts: 0.25mm bare fiber, 0.9mm tight-buffered pigtail and 2.0 x 3.0mm drop cable. A built-in length-fixing function keeps the cleave length consistent, so you do not need to carry a separate length fixer.
At its core is a hard, wear-resistant tungsten steel blade with 16 cutting positions. Rotating through the positions spreads out wear, giving the blade a service life of more than 48,000 cleaves. The blade returns automatically after each cut, speeding up repetitive work, and the stainless steel slide rail keeps every stroke smooth and accurate.
The aluminum alloy body is built to last, while the sponge pressing block and non-slip feet help protect both the fiber and the blade during use. An attached waste fiber box catches broken fiber ends to keep your work surface clean and safe. Small and light, the cleaver packs into its included shockproof bag along with a hex key, ready for indoor and outdoor jobs.
Specification
| Specification | Details |
|---|---|
| Model | A-60C |
| Product Type | Fiber Optic Cleaver |
| Connector Type | Optic |
| Cable Type | Fiber Optic |
| Connectivity Technology | Optic |
| Compatible Fiber | 0.25mm, 0.9mm, 3.0mm, 2.0 x 3.0mm fiber cable |
| Fiber Clamp | 3-in-1 (bare fiber 0.25mm, pigtail 0.9mm, drop cable 2.5 to 3.0mm) |
| Blade Material | Tungsten steel |
| Blade Positions | 16 cutting points |
| Blade Life | 48,000+ cleaves |
| Body Material | Aluminum alloy |
| Slide Rail | Stainless steel |
| Blade Return | Automatic |
| Length Fixing | Built-in |
| Special Feature | Waste fiber box |
| Application | Fusion splicing and mechanical splicing |
| Indoor / Outdoor Usage | Indoor, Outdoor |
| Color | Black |
| Number of Items | 1 |
| Included Components | Fiber cleaver, shockproof carry bag, hex key |
