M70 Optical Power Meter and M1315 Singlemode Light Source Fiber Tester Kit with 10km VFL, 10 Wavelengths, 1310/1550nm and RJ45 Test
FYBOPTWU
- SKU
- FOD-OPM-M70-LS1315
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
Key Features

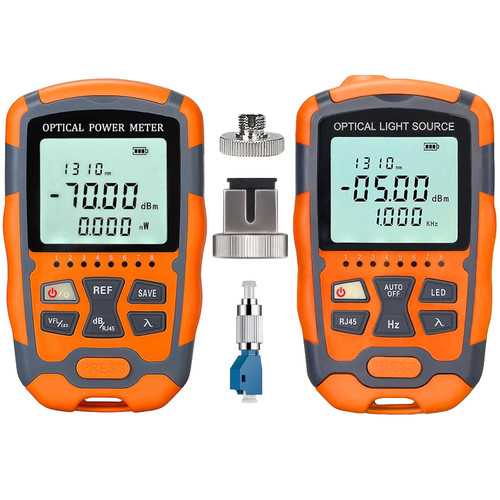

- 2-piece fiber test kit: M70 optical power meter plus M1315 singlemode light source
- Power meter measures 10 wavelengths: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm
- Wide measurement range of -70dBm to +10dBm
- Built-in 10km visual fault locator (VFL) on the power meter for finding breaks and bends
- Light source outputs 1310nm and 1550nm at -5dBm
- Selectable modulation: CW, 270Hz, 1kHz and 2kHz
- Both units include RJ45 line sequence (pinout) testing and LED lighting
- Includes FC to LC/SC/FC adapter for flexible connector testing
- Compact and portable, each unit runs on 2 AAA batteries
Description
Measuring optical power and link loss is essential for installing, certifying and troubleshooting fiber networks. This fiber tester kit pairs an M70 optical power meter with an M1315 singlemode light source, giving you a complete, pocket-sized solution for insertion loss testing and fault finding in the field.
The M70 power meter covers 10 standard wavelengths from 850nm to 1650nm, making it suitable for multimode, singlemode, PON, CWDM and FTTH applications. With a test range of -70dBm to +10dBm, it handles everything from low-signal long-haul links to high-power active equipment. A built-in 10km visual fault locator projects visible red light into the fiber, helping you quickly spot breaks, tight bends and bad connectors without switching tools.
The M1315 light source provides stable 1310nm and 1550nm output at -5dBm for accurate loss measurements on singlemode links. Choose continuous wave (CW) or modulated output at 270Hz, 1kHz or 2kHz for fiber identification and testing with compatible equipment.
Both devices also include an RJ45 line sequence test for checking copper network cable pinouts, plus built-in LED lighting for working in dark closets, ceilings and enclosures. An FC to LC/SC/FC adapter is included so you can connect to the most common fiber connectors. Each unit is powered by 2 AAA batteries (4 total, not included), keeping the kit light and easy to carry for installers, field technicians and network maintenance teams.
Specification
| Specification | Details |
|---|---|
| Kit Contents | M70 optical power meter, M1315 singlemode light source, FC to LC/SC/FC adapter |
| Number of Items | 2 |
| Measurement Type | Optical Power Meter |
| OPM Wavelengths | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm |
| OPM Measurement Range | -70dBm to +10dBm |
| OPM VFL Function | Built-in, 10km |
| Light Source Wavelengths | 1310nm, 1550nm |
| Light Source Output Power | -5dBm |
| Light Source Modulation | CW, 270Hz, 1kHz, 2kHz |
| Additional Functions | RJ45 line sequence test, LED lighting (both units) |
| Power Source | Battery powered, 2 x AAA per unit (4 total, not included) |
| Compatible Devices | Fiber optic systems, fiber optic devices |
| Color | Orange |
