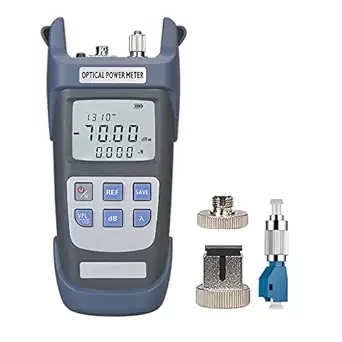

3-in-1 Fiber Optic Tester OPM + 1mW VFL with LED Light, Optical Power Meter -70 to +10dBm for FTTH
FYBOPTWU
- SKU
- FOD-OPM-VFL-01
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
3-in-1 Fiber Optic Tester – Optical Power Meter, 1KM Visual Fault Locator & LED Light
The 3-in-1 Fiber Optic Tester with Optical Power Meter (OPM), 10KM Visual Fault Locator (VFL), and LED Light is a compact, multifunctional testing tool designed for fiber optic installation, maintenance, and troubleshooting.
Featuring an optical power measurement range of -70 to +10dBm and a built-in 10KM Visual Fault Locator, this handheld fiber tester is ideal for FTTH installations, telecommunications networks, data centers, and fiber optic cable maintenance.
Combining three essential functions in one portable device, it helps technicians measure optical signal power, identify certain fiber cable faults, and work efficiently in low-light environments.
Key Features
-
3-in-1 Multifunction Tester: Combines Optical Power Meter (OPM), Visual Fault Locator (VFL), and LED flashlight.
-
10KM Visual Fault Locator: Built-in red laser for locating certain fiber breaks, bends, and connection problems.
-
Wide Optical Power Range: Measures optical power from -70 to +10dBm.
-
10 Testing Wavelengths: Supports 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm.
-
High Measurement Precision: Advertised optical power measurement error of less than 0.2dB.
-
Data Storage: Stores up to 500 sets of measurement data.
-
Automatic Shutdown: Automatically powers off after approximately 10 minutes of inactivity.
-
Portable & Lightweight: Compact handheld design for field technicians.
-
LED Flashlight: Convenient illumination for working inside network cabinets and equipment racks.
-
Battery Powered: Operates using 2 AAA batteries (not included).
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | 3-in-1 Fiber Optic Tester |
| Functions | OPM + VFL + LED |
| VFL Range | Advertised Up to 10KM |
| Optical Power Range | -70 to +10dBm |
| OPM Wavelengths | 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm |
| Measurement Accuracy | Advertised Error Less Than 0.2dB |
| Data Storage | Up to 500 Records |
| Auto Power Off | Approximately 10 Minutes |
| Power Supply | 2 AAA Batteries |
| Batteries Included | No |
| Device Color | Blue |
| Package Quantity | 1 Tester |
Applications
-
FTTH (Fiber to the Home) Installations
-
Fiber Optic Cable Troubleshooting
-
Optical Signal Power Measurements
-
Telecommunications Network Maintenance
-
Data Center Fiber Testing
-
Fiber Patch Cord Inspection
-
Enterprise Fiber Network Installations
-
Fiber Continuity and Fault Troubleshooting
Package Includes
-
1 × 3-in-1 Fiber Optic Tester (OPM + 10KM VFL + LED)
-
Connector accessories as supplied with the unit
Note: Requires 2 AAA batteries, which are not included. The 10KM VFL rating is an advertised maximum; actual visible fault detection depends on the fiber type, cable construction, and testing conditions. Never look directly into the laser or a connected fiber end.
