20m (66ft) ST to ST Single Mode Armored Fiber Optic Cable, 12 Strand, 9/125 OS2, Outdoor

Write a Review
$399.00
SKU
FOD-STST-SM12-ARM-20M
UPC
7426933685641
Weight
1.00 LBS
Shipping
Free Shipping

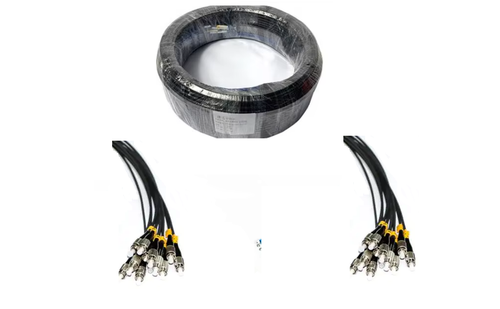

20M ST to ST Single Mode 12 Strand Outdoor Armored Fiber Optic Cable

This 20 meter (66 ft) armored fiber cable uses a built-in metal armor layer to give the optical fibers far stronger protection than a standard fiber optic cable. The rugged armored construction allows the fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents. The 20m length suits short runs between racks, adjacent rooms, or a building entry point and a nearby patch panel, where you still need outdoor-rated protection but do not want the extra slack of a longer reel.

Terminated with ST UPC connectors on both ends and built on 9/125μm single mode glass, it delivers low insertion loss and high return loss for reliable long-haul, campus, and backbone links. The stainless steel tube and PVC jacket handle a 40mm bend radius and tensile loads of 100 to 132 lbs, and it operates from -40 to 75°C.


Connector-1 ST UPC Connector-2 ST UPC
Fiber Mode 9/125μm Fiber Type Duplex
Cable Diameter 3.0mm Cable Jacket Single Armored
Cable Color Blue Cable Material Stainless steel tube, PVC
Bend Radius 40mm Tensile Loads 100~132 lbs
Insertion Loss ≤0.3dB Return Loss ≥50dB
Operating Temperature -40~75°C Storage Temperature -45~85°C

Key Features

  • 20 meter (66 ft) factory-terminated and tested assembly, ready to install out of the box
  • Built-in stainless steel interlocking armor protects against crush, rodents, and rough handling
  • Outdoor rated for dust, oil, gas, and moisture exposure
  • 12 strand single mode 9/125μm OS2 glass for high capacity backbone and campus runs
  • ST UPC connectors on both ends with ≤0.3dB insertion loss and ≥50dB return loss
  • Wide -40 to 75°C operating range for outdoor, plenum entry, and industrial spaces
  • Tight 40mm bend radius makes routing easier in crowded trays and conduit
