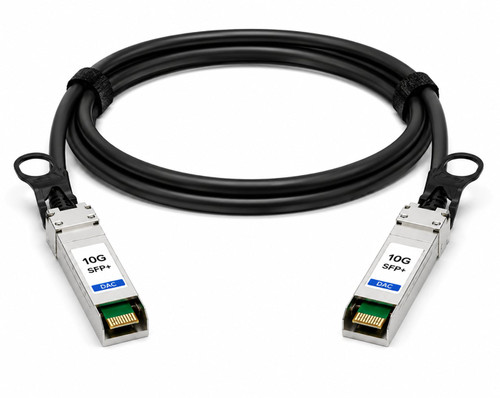

1m (3ft) IBM 46K6182 Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable

Write a Review
$31.00
SKU
FOD-IBM-46K6182-1M
Weight
1.00 LBS
Shipping
Free Shipping

The IBM 46K6182 Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable is a high-performance and cost-effective solution for short-distance 10 Gigabit Ethernet connectivity. This 1-meter (3ft) passive DAC cable supports data rates up to 10.5Gbps and is designed as a compatible alternative to the IBM 46K6182.

Each cable is individually programmed and tested for compatibility with supported IBM networking equipment, including 10G switches, routers, network interface cards (NICs), servers, and network storage systems. The integrated SFP+ connectors provide a direct copper connection between compatible SFP+ ports without requiring separate optical transceivers or fiber patch cables.

Designed for data centers, enterprise networks, high-performance computing (HPC), storage networks, and high-density rack installations, the passive 30AWG Twinax construction provides reliable and low-power connectivity for short-reach 10GbE applications.

Key Features

  • Compatible with IBM 46K6182
  • 1m (3ft) cable length
  • Passive Direct Attach Copper (DAC)
  • SFP+ to SFP+ connectivity
  • Supports data rates up to 10.5Gbps
  • Supports 10 Gigabit Ethernet (10GBASE-CU)
  • Supports 8G Fibre Channel
  • Supports Fibre Channel over Ethernet (FCoE)
  • Individually programmed and tested for supported IBM equipment
  • 30AWG Twinax copper construction
  • 100Ω cable impedance
  • High-speed differential signal interface
  • Improved Pluggable Form Factor (IPF)
  • Enhanced EMI/EMC performance
  • Single 3.3V power supply
  • Minimum cable bend radius: 25mm
  • PVC cable jacket
  • Operating temperature: 0°C to 70°C
  • RoHS compliant and lead-free

Technical Specifications

SpecificationDetails
Compatible OEM Part Number IBM 46K6182
Product SKU FOD-IBM-46K6182-1M
Form Factor SFP+ DAC Cable
Cable Type Passive Direct Attach Copper (DAC)
Connector SFP+ to SFP+
Maximum Data Rate 10.5Gbps
Cable Length 1m (3ft)
Cable Construction Twinax Copper
Wire Gauge 30AWG
Cable Impedance 100Ω
Jacket Type PVC
Supply Voltage 3.3V
Minimum Bend Radius 25mm
Digital Diagnostic Monitoring N/A
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Weight Approximately 0.1kg
Compliance SFF-8431, SFF-8472, RoHS

Applications

  • IBM 10G switches and networking equipment
  • IBM servers and network adapters
  • 10 Gigabit Ethernet (10GbE)
  • Server-to-switch connections
  • Switch-to-switch connections
  • Top-of-Rack (ToR) switching
  • Network Interface Cards (NICs)
  • Storage Area Networks (SAN)
  • Network Attached Storage (NAS)
  • Fibre Channel applications
  • Fibre Channel over Ethernet (FCoE)
  • High-performance computing (HPC)
  • Switched fabric I/O
  • High-density network connections
  • Data center cabling infrastructure
