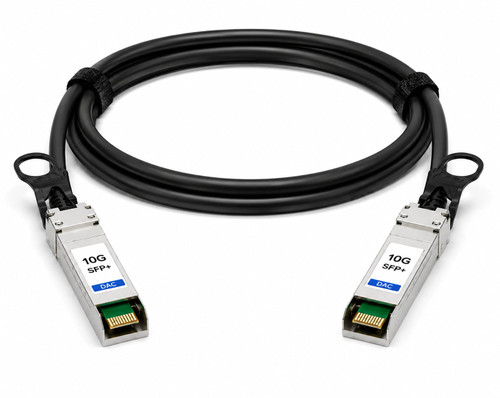

1m (3ft) Brocade 10G-SFPP-TWX-P-0101 / 58-1000024-01 Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
Planet
- SKU
- SFP-10G-DAC1M-BRO
- Weight
- 1.00 LBS
- Shipping
- Free Shipping
The Brocade 10G-SFPP-TWX-P-0101 / 58-1000024-01 Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable provides a high-performance and cost-effective solution for short-distance 10 Gigabit Ethernet connectivity. This 1-meter (3ft) passive DAC cable supports 10Gbps data transmission and is designed as a compatible alternative to Brocade 10G-SFPP-TWX-P-0101 and 58-1000024-01.
The cable is factory-programmed for compatibility with supported Brocade networking equipment and is designed for high-speed interconnections between switches, servers, network adapters, and storage systems equipped with SFP+ ports.
Its passive 30AWG Twinax copper construction provides a direct SFP+ connection without requiring separate optical transceivers or fiber patch cables, making it suitable for rack-level and other short-reach connections in data centers, enterprise networks, storage environments, and cloud infrastructure.
Key Features
- Compatible with Brocade 10G-SFPP-TWX-P-0101
- Compatible with Brocade 58-1000024-01
- 1m (3ft) cable length
- Passive Direct Attach Copper (DAC)
- SFP+ to SFP+ connection
- Supports 10Gbps data transmission
- Designed for 10 Gigabit Ethernet (10GbE)
- Factory-programmed for supported Brocade equipment
- 30AWG Twinax copper construction
- 100Ω cable impedance
- High-speed differential signal interface
- Hot-pluggable SFP+ form factor
- Single 3.3V power supply
- Minimum bend radius: 25mm
- PVC cable jacket
- Operating temperature: 0°C to 70°C
- RoHS compliant
Technical Specifications
| Specification | Details |
|---|---|
| Compatible OEM Part Number | Brocade 10G-SFPP-TWX-P-0101 / 58-1000024-01 |
| Product SKU | SFP-10G-DAC1M-BRO |
| Form Factor | SFP+ DAC Cable |
| Cable Type | Passive Direct Attach Copper (DAC) |
| Connector | SFP+ to SFP+ |
| Data Rate | 10Gbps |
| Cable Length | 1m (3ft) |
| Cable Construction | Twinax Copper |
| Wire Gauge | 30AWG |
| Impedance | 100Ω |
| Jacket Type | PVC |
| Supply Voltage | 3.3V |
| Minimum Bend Radius | 25mm |
| Digital Diagnostic Monitoring | N/A |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Weight | Approximately 0.13kg |
| Compliance | SFF-8431, SFF-8472, RoHS |
Applications
- 10 Gigabit Ethernet (10GbE)
- Brocade-compatible switches and networking equipment
- Switch-to-switch connections
- Server-to-switch connections
- Network adapters
- Storage Area Networks (SAN)
- Network Attached Storage (NAS)
- Switched fabric I/O
- High-density 10GbE connections
- Rack-level network connectivity
- Data center cabling infrastructure
- Cloud computing infrastructure
