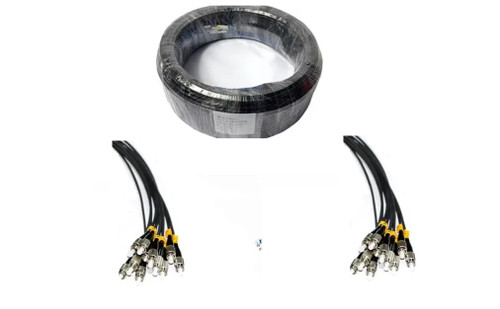

150M (492ft) 12 Strand Outdoor Armored Fiber Optic Cable, ST to ST UPC, OS2 9/125 Single Mode

Key Features

• 150 Meter (492ft) Extended-Length Fiber Cable: Designed for long-distance connections between commercial buildings, industrial facilities, telecommunications equipment, and outdoor network infrastructure.

• 12 Strand OS2 Single Mode Fiber: Features twelve individual 9/125μm optical fibers, providing six duplex pairs for multiple network connections, spare capacity, and future expansion.

• Stainless Steel Armored Protection: Reinforced metal armor helps protect sensitive optical fibers from crushing, rodent damage, accidental impacts, and mechanical stress.

• Factory-Terminated ST UPC Connectors: Pre-installed ST UPC connectors on both ends eliminate field connector polishing, termination, and intermediate fiber splicing.

• Six Duplex Fiber Pairs: Supports up to six independent duplex optical links or allows unused fibers to remain available for redundant connections and future network upgrades.

• Continuous 150-Meter Assembly: Supplied as one pre-terminated cable, reducing installation complexity and eliminating intermediate splice points along the route.

• Outdoor and Industrial Applications: Suitable for campus networks, manufacturing plants, warehouses, agricultural facilities, remote telecommunications cabinets, and security surveillance infrastructure.

• High-Bandwidth OS2 Fiber: 9/125μm single mode fiber supports dependable optical data transmission for compatible Ethernet equipment, telecommunications systems, and fiber backbone connections.

• Low-Loss ST UPC Connectivity: Specified insertion loss of ≤0.3dB and return loss of ≥50dB help ensure reliable optical performance.

• Durable Cable Construction: Stainless steel tube and PVC outer jacket provide additional mechanical protection for demanding installation environments.

• Wide Operating Temperature: Specified operating range of -40°C to 75°C for industrial and appropriately rated outdoor network installations.

Description

The 150 meter (492 ft) ST to ST outdoor armored fiber optic cable is designed to establish dependable, high-capacity single mode fiber connections across large commercial properties, industrial environments, and outdoor telecommunications networks. Featuring 12 strands of 9/125μm OS2 single mode fiber, this reinforced cable provides six duplex fiber pairs in one continuous assembly, making it an efficient solution for installations that require multiple optical links over extended distances.

An integrated stainless steel armor layer helps shield the internal optical fibers from crushing, rodents, accidental impacts, and mechanical damage. This additional protection is especially valuable in industrial environments and outdoor cable pathways where standard unarmored fiber optic cables may be vulnerable to physical hazards.

150-Meter Connectivity for Large Properties and Remote Equipment

With a 150-meter (492 ft) length, this armored fiber cable is well suited for establishing network connections between separate buildings, extending fiber infrastructure to remote equipment locations, and linking telecommunications distribution cabinets across large facilities.

Typical applications include connecting manufacturing buildings, warehouse distribution centers, agricultural facilities, industrial control systems, and perimeter security equipment.

The extended length allows installers to route fiber through suitable conduit systems and designated cable pathways without connecting multiple shorter assemblies.

Each cable arrives factory-terminated and tested with ST UPC connectors on both ends, eliminating the need for field connector polishing, intermediate fiber splicing, or specialized termination work.

The continuous assembly reduces installation complexity and avoids additional splice-related loss along the route.

Twelve Fibers for High-Capacity Network Infrastructure

The 12 strand configuration delivers six duplex fiber pairs inside one protective armored cable, providing multiple connection options for current networking requirements and future infrastructure upgrades.

Several fiber pairs can be dedicated to active connections between compatible network switches, telecommunications devices, industrial controllers, and fiber distribution equipment.

The remaining pairs can be reserved for backup links, equipment replacements, or additional network connections as infrastructure requirements grow.

Alternatively, all six duplex pairs can support independent optical links, allowing multiple systems to share the same physical cable route.

For a 150-meter installation, this spare capacity can provide considerable long-term value. Adding new fibers after the initial deployment may require reopening lengthy cable pathways, accessing difficult locations, or interrupting existing equipment operations.

Installing twelve fibers from the beginning helps organizations plan for future connectivity needs while minimizing additional cable installation work.

Reinforced Mechanical Protection and Reliable Optical Transmission

Constructed using 9/125μm OS2 single mode optical fiber, this cable supports high-bandwidth communication with low optical attenuation for enterprise networks, industrial Ethernet systems, telecommunications applications, and fiber backbone infrastructure.

The factory-installed ST UPC connectors provide specified insertion loss of ≤0.3dB and return loss of ≥50dB, helping maintain reliable optical connections between compatible networking equipment.

Its stainless steel armor provides additional resistance to mechanical damage, while the PVC outer jacket helps protect the internal fibers during installation and operation.

A specified 40mm bend radius and 100–132 lbs tensile load support installation through suitable cable pathways and protected conduit systems. The operating temperature range of -40°C to 75°C supports demanding industrial environments and outdoor installations where the cable jacket is appropriately rated.

For projects involving multiple network connections across large properties, the 150M ST to ST 12 Strand OS2 Armored Fiber Optic Cable offers a combination of extended reach, fiber capacity, reinforced protection, and installation convenience.
